1Core Outdoor Ftth drop Cable-GYJXCH

Short Description:

Coated nylon jacket provide anti termite performance and with additional e glass yarn strength for anti rodent, idea for the UG Conduit and directly buried in a harsh environment .Central loose tube for 2-36core design with costly cable, single mode 9/125 and multi mode 50/125 as options.

100% ISO IEC Certificated Manufacturer ,Help You Save Purchase Cost ! Click send inquiry to get best offer and free sample now !

Send email to us

Product Detail

Product Tags

Video

Description:

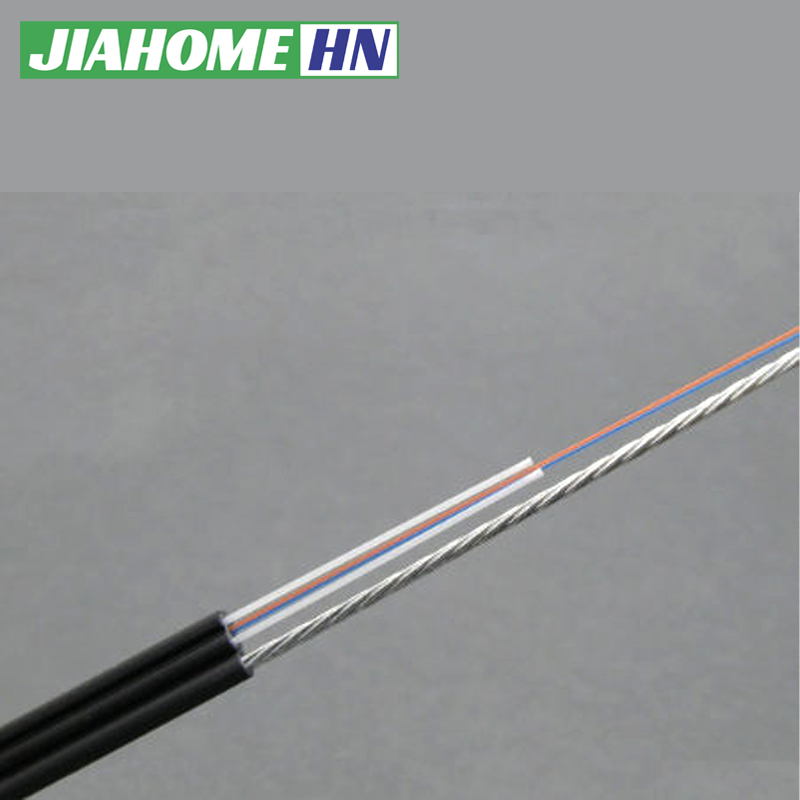

The typical GJYXCH self-supporting butterfly drop optical cable consist of Solid messenger wire 1.0mm/1.2mm steel wire ,and 2pcs of Stronger steel wire as Strength member ,Extrude with outer sheath lszh (low smoke zero halogen) suitable for outdoor indoor used.

Fiber Type: G652D, G657A1, G657A2 available
Fiber Count: 1-12 Cores

Application:

● Internal FTTH applications horizontal and riser.
● Clipping to surfaces including skirting boards.
● Fiber to the home

Warranty :20years
Delivery time：2week/container
Production capacity：50000km/month
Package：Strong axis coil 2km 1km
Carton:OEM and strong 5-7Layer carton
Standards:IEC60794 ISO9001
Diameter：2x5mm

Structures

Part code	FTTH-GJYXCH
Number of Fibers	Unit	1	2	4	8
Strength member	Material	Steel wire	Steel wire	Steel wire		Steel wire
Messenger wire	Material	Solid steel wire 1.0mm/1.2mm
Outer sheath	Material	Lszh black	Lszh black	Lszh black	Lszh black
Cable nominal Diameter	MM ±0.1	2.0*5.0	2.0*5.0	2.1*5.0	2.1*5.6
Cable nominal weight	Kg/Km ±2	21	21	21	21
Max. working tension	N	600	600	600	600
Span	Meter	50-60
Max. crush resistance	N	600 (Short term) / 400(Long term)
Min. bending radius		At full load 20 x Cable OD (including poles)At no load 15 x Cable OD
Temperature range		Installation -0 -> +50 Operation -20 -> +70
