ADSS 96 Core 400m Long Span Double Jacket Aerial Fiber Optic Cable

Short Description:

Double sheath with 12 cores per tube, a total of 96 single-mode G652 optical fibers, using HDPE material sheath to ensure that outdoor plants can resist ultraviolet rays for 25 years, and the tensile load can reach 2500N, ensuring good quality when using ADSS optical cables, reducing cable breakage ACCIDENT. Network Backbone Concept with excellent mechanical properties as distributor and feeder cable.

Cable laying method: overhead, overhead self-supporting pole

Features: 400m span, black PE sheath, 10.4mm diameter advertising cable

Fiber type: single mode os2 9/125 ITU-T G652D

Optical cable fiber attenuation: ≤0.36dB/km@1330nm ≤0.22dB/km1550nm

Brand: Jiahome or OEM your brand printed on the cable and package

Delivery: FOB any port in China or CIF (we ship the goods to your destination port)

Delivery time: 2 weeks after payment

Payment terms: T/T L/C, D/P and other flexible terms

Warranty: 25 years

Price: very competitive price, discount negotiation now

We are an ISO IEC certified manufacturer with confidence in quality and we are ready to go! and you? Click to send inquiry to get the best quotation and free samples!

Send email to us

Product Detail

Product Tags

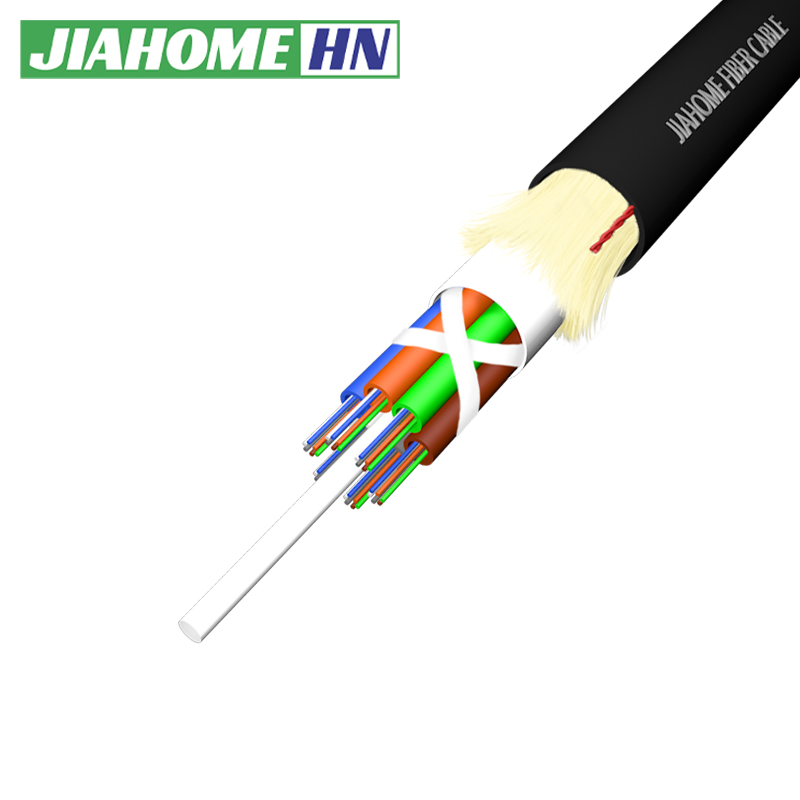

Structure

Jiahome is the leading manufacturer of adss fiber cable, the adss cable can be designed and produced according the exactly installation line like if weather is snowing and icing ? what sag of adss should be workable, whats more the installation of adss cable guide training are available.
welcome to contact us for more detail offer.

Application

The ADSS Fiber widely application install on the existed electrical pole like 35-110kv power transmission line ,the area which more lightning weather .according to different span (the max distance of between pole and pole),Jiahome is able to design the span up to 1500Meter .

Work life: 25-30years
Fiber type: Normally Single Mode G652D Fiber
Outer sheath: Anti UV or Anti tracking
Delivery time: 3week
Loading of port: Shenzhen /Shanghai
Standards: ISO9001 IEC60794

Features

All dia electrical self supporting fiber cable
Long span 400meter up to 1500Meter Span
Double jacket design with anti tracking outer sheath

CABLE DESIGN

Part code	ADSS 96 -DJ
Number of Fibers	Unit	96Core
Number of fiber in tube	Nos	12
Number of loose tube	Nos	8
Central strength member	Material	FRP
Loose tube	Material	PBT
peripheral strength member	Material	Aramid yarn
Water block	Material	Water swellable tape and water block yarn
Inner sheath	Material	PE
Outer sheath	Material	HDPE
Cable nominal Diameter	MM ±0.2	14.3
Cable nominal weight	Kg/Km ±5	109
Max allowable tension Load	N	6900
Span		400m span
Max. crush resistance	N	2000 (Short term) / 1000 (Long term)
Min. bending radius		At full load 20 x Cable OD (including poles)At no load 15 x Cable OD
Temperature range		Installation -0 -> +50 Operation -10 -> +70

Fiber color code according to below tape or as per request

1-12Core	Blue	Orange	Green	Brown	Grey	White
	Red	Black	yellow	Violet	Pink	Aqua

Jiahome is the leading manufacturer of adss fiber cable , the adss cable can be designed and produced according the exactly installation line like if weather is snowing and icing ? what sag of adss should be workable ,whats more the installation of adss cable guide training are available .
welcome to contact at us for more detail offer !
