ADSS Dead End Tension Assembly Clamp

Short Description:

This product is a combination of clamp, with a suspension head (each head by a rubber clamp suspension, aluminum plates, U-card, bolt, spring cushion, flat pad, nut, pin closed form), outer preformed wire, retaining Preformed wire line combination. Directly preformed armour rods wrapped around the cable surface, providing protection for the cable and stiffness, protecting the line wire is preformed rubber grip clamp inserts, outer middle preformed wire cutter type of rubber from the press and hold the drum clamp, aluminum Maintain its external splint.

100% ISO IEC Certificated Manufacturer ,Help You Save Purchase Cost ! Click send inquiry to get best offer and free sample now !


Product Detail

Product Tags

Video

U-card:

Made of high strength aluminum alloy.

Aluminum splint:

Made of corrosion-resistant aluminum die casting, the aluminum chemical stability, good resistance to atmospheric corrosion and has good mechanical properties.

Rubber clamp:

Be made of quality rubber and center strength member ,has anti-ozone resistance, chemical resistance, weather aging, with high and low temperature performance, and high strength and elasticity, the smaller deformation.

Bolt,Elastic pad,Flat pad,Nut:Hot galvanized Standard Parts
Closed bolt:Power standard parts
Preformed armour rods:Aluminum alloy wire, high tensile strength, hardness and good flexibility and strong anti-rust capability, in bad weather conditions long-term use.
Preformed outer rods:Same with preformed armour rods.
link fitting:Shackle,U-bolt,UB-clevis,ZH-hanging ring are all power standard parts.

Instruction:

1. In the tower, a tower, with a terminal Angle (elevation) is greater than 25 ° tower and tower of the connection.The specific configuration is: terminal tower — –1 set/tower;Tension tower — –2 sets/tower;Connecting tower — –2 sets/tower.
2. According to cable diameter, cable maximum allowable use tension (MAT) or gear with tension cable clip, the user can choose according to the selection of the specification table suitable tension cable clip.

Notes:

Only a part of Tension Clamps/Dead-end Fittings are listed here. We can depend on customer’s requirement to producing the different model Tension Clamps/Dead-end Fittings.

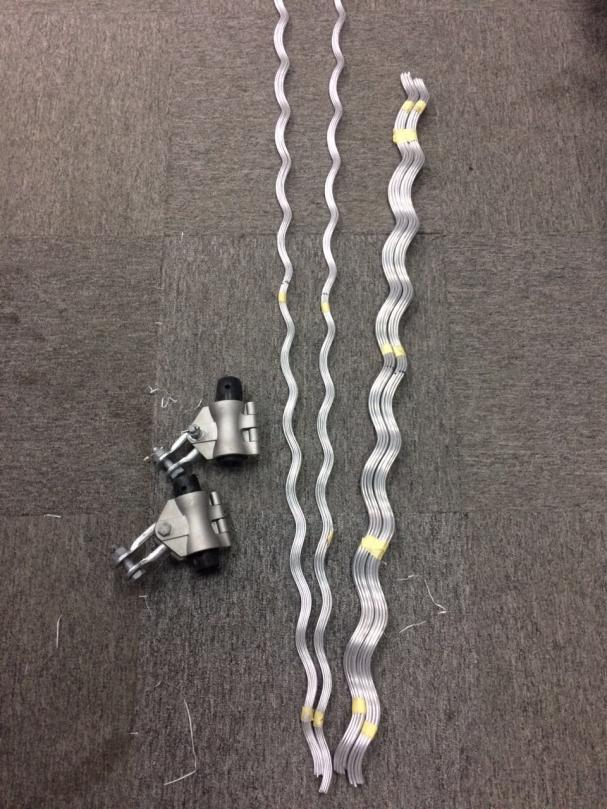

p2
p3

Description：

The pre-twisted tension clamp for ADSS optical cable is used for the connection between the pole tower and the optical cable of the ADSS optical cable line. The special design of the pre-twisted wire can ensure the grip strength of the product and better protect the optical fiber of the optical cable from being crushed and damaged, and ensure that the signal transmission of the optical fiber will not be attenuated.

features：

1. Product installation is convenient, free installation, no special installation tools are required. And the installation quality is guaranteed. 2. Under the premise of ensuring that the grip strength of the optical cable is not less than 95% of the rated tensile strength (CUTS) of the optical cable, at the same time, the optical cable is not lost. 3. The product has strong interchangeability, and can be connected with a variety of fittings, increasing the scope of application. 4. The product is made of aluminum clad steel wire or galvanized steel wire material, with high strength mechanical properties and extremely high corrosion resistance
