EPFU Airblown Enhanced Performance Fibre Units

Short Description:

Enhanced Performance Fiber Unit (EPFU) is small size, light weight, enhanced surface outer sheath fiber unit designed for blowing into micro tube bundles by air flow. The outer thermoplastic layer provides a high level of protection and excellent installation properties.

100% ISO IEC Certificated Manufacturer ,Help You Save Purchase Cost ! Click send inquiry to get best offer and free sample now !

Send email to us

Product Detail

Product Tags

Video

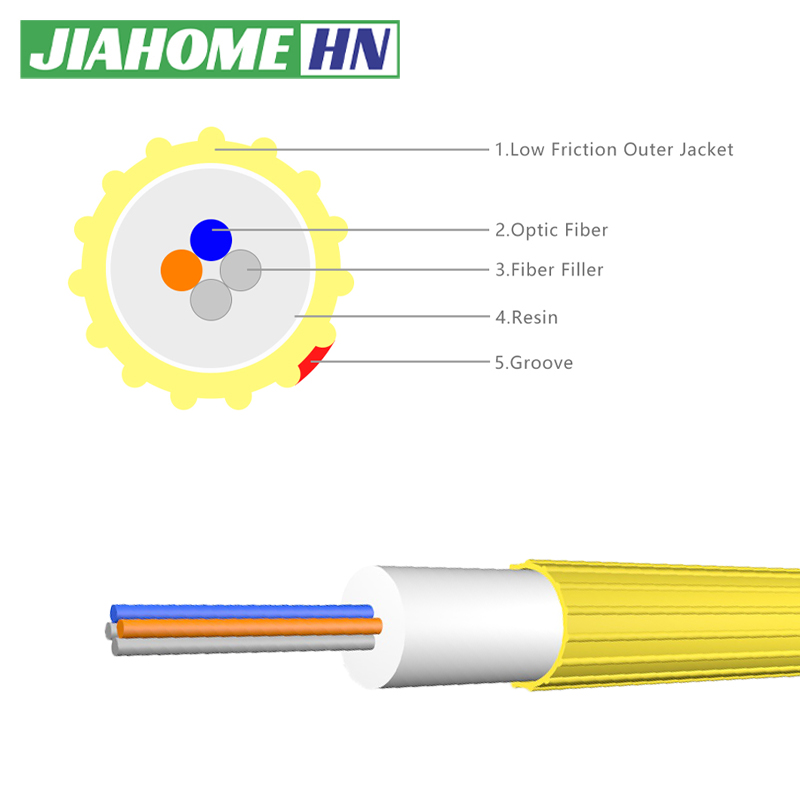

Structure

Application

• The cable can be used as the indoor drop cable in FTTH networks and can be laid by air blowing with a handheld device, to connect the family multimedia information boxes with the access point for subscribers
Delivery Length
• Standard length: 2,000m; other lengths are also available

Transport/storage temperature: -40℃ to +70℃

Features

1. Using G.657.A2 bending insensitive optical fiber, small bending radius
2. Small size and light weight
3. Unique sheath design ensures good blowing performance

Technical Characteristics

Type	Fibre count	O.D. (mm)	Weight (Kg/km)	Tensile strength Long/short term (N)	Crush resistance short term (N/100mm)
EPFU-02B6a2	2	1.1	1.1	0.15G/0.5G	100
EPFU-04B6a2	4	1.1	1.1	0.15G/0.5G	100
EPFU-06B6a2	6	1.3	1.3	0.15G/0.5G	100
EPFU-08B6a2	8	1.5	1.8	0.15G/0.5G	100
EPFU-12B6a2	12	1.6	2.2	0.15G/0.5G

Blowing Characteristics

Fibre count	2	4	6	8	12
Duct diameter	5.0/3.5 mm	5.0/3.5 mm	5.0/3.5 mm	5.0/3.5 mm	5.0/3.5 mm
Blowing pressure	8bar / 10bar	8bar / 10bar	8bar / 10bar	8bar / 10bar	8bar / 10bar
Blowing distance	500m/1000 m	500m/1000 m	500m/1000 m	500m/1000 m	500m/800 m
Blowing time	15min/30min	15min/30min	15min/30min
