Double Armored Fig 8 DJDA Fiber Optic Cable

Short Description:

Central strength member (CSM): Glass fibre reinforced plastic material (GRP) with or without over-sheathing

Tube:Mulit tube sz strands

Water block:Gelly filling compound in tube can cable core

Reinforcing: High modulus Aluminum tape double armored tape

Sheath: UV stabilised polyethylene in

100% ISO IEC Certificated Manufacturer ,Help You Save Purchase Cost ! Click send inquiry to get best offer and free sample now !

Send email to us

Product Detail

Product Tags

Video

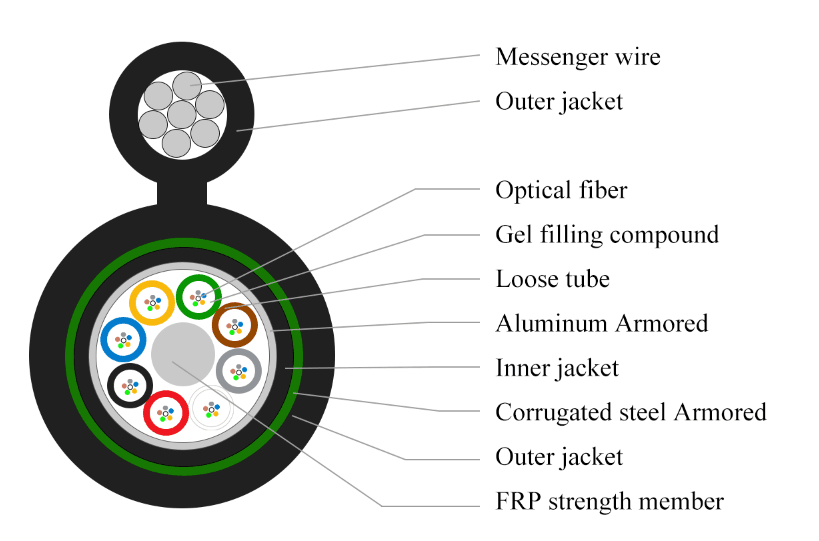

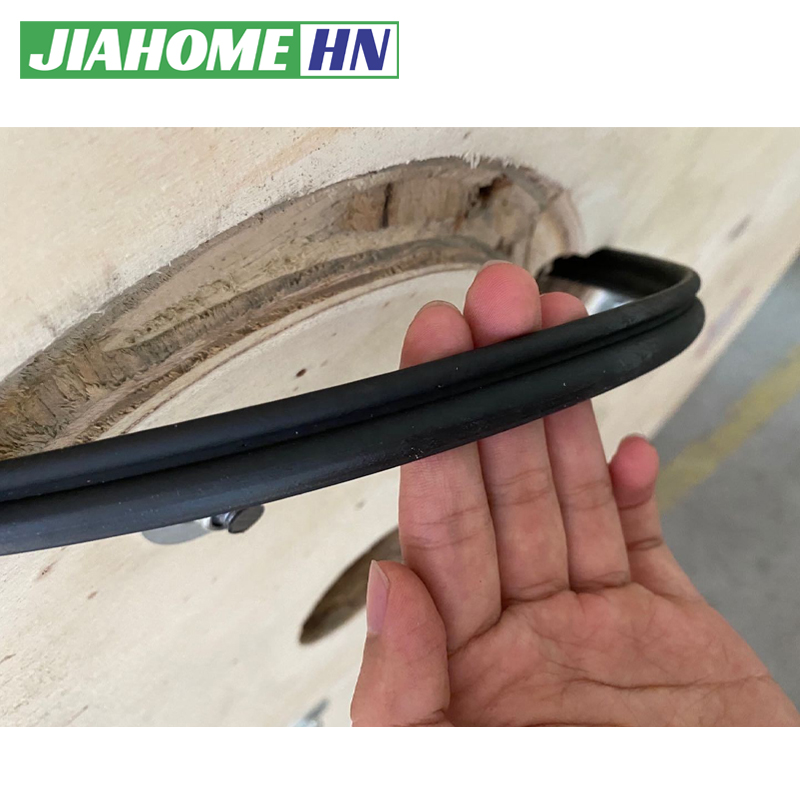

Cable Design

construction

Central strength member (CSM): Glass fibre reinforced plastic material (GRP) with or without over-sheathing
Tube:Mulit tube sz strands
Water block:Gelly filling compound in tube can cable core
Reinforcing: High modulus Aluminum tape double armored tape
Sheath: UV stabilised polyethylene in

Technical data sheet

Part code	JH-FIG8 DJDA -XXXF
Number of Fibers	Unit	6/12/24	48	96
Central strength member	Material	FRP	FRP	FRP
Loose tube	Material	PBT		PBT
Armored	Material	Double Aluminum tape		Double Aluminum tape
Water block	Material	Gelly filling compound in tube and cable core
Messenger wire	Size and material	7*1.0mm Galvanized steel wire
Inner sheath	Material	PE	PE	PE
Outer sheath	Material	PE	PE	PE
Cable nominal Diameter	MM ±0.2	12.8*20	12.8*20	14.5*25
Cable nominal weight	Kg/Km ±5	220	225	256
Max. working tension	N	3000		3500
Max. crush resistance	N	2200 (Short term) / 1100 (Long term)
Min. bending radius		At full load 20 x Cable OD (including poles)At no load 15 x Cable OD
Temperature range		Installation -0 -> +50 Operation -10 -> +70

Optical Characteristics SINGLE MODE G652D

Mode Field Diameter @ 1310 nm		8.7-9.5 mum

Mode Field Diameter @ 1550 nm		9.8-10.8mum

Cladding diameter		125.0 ±± 0.7mm

Core/cladding concentricity error		0.6 um
Cladding non-circularity		1.0 %
Refractive index profile		Step
Design		Matched cladding
Primary coating material		UV curable acrylate
Primary coating Diameter		235-250um
Optical Characteristics
Attenuation	@ 1310nm	£ 0.36 dB/km (cabling)
	@ 1383±3nm	£ 0.34 dB/km
	@ 1550nm	£ 0.22dB/km (cabling)
Dispersion	@ 1288 ~ 1339nm	£ 3.5 ps/nm×km
	@ 1550nm	£ 18 ps/nm×km


Zero dispersion wavelength		1300 – 1324 nm
Dispersion slope at zero dispersion wavelength		£ 0.092 ps/nm²×km
Cabled cut-off wavelength (lcc)		£ 1260 nm
Polarization mode dispersion link value		£ 0.2 ps/√_km
Mechanical Characteristics
Proof stress level		≥0.69 GPa
The loss increase of 100 turns of fiber loosely wound with		£0.05dB (at 1550nm)
25mm radius
Effective group index of refraction Neff		1.466(at 1310nm)
Effective group index of refraction Neff		1.467 (at 1550nm)

Identification

The fibers shall be marked by a coloured coating with 12 different colours according to EIA/TIA 598:

Fibre #1: Blue Fibre #7: Red

Fibre #2: Orange Fibre #8: Black (natural with being marked

Fibre #3: Green Fibre #9: Yellow

Fibre #4: Brown Fibre #10: Violet

Fibre #5: Grey Fibre #11: Pink

Fibre #6: White Fibre #12: Aqua (Light Blue)

No.	1	2	3	4	5	6	7	8	9	10	11	12
Colour	blue	orange	green	brown	grey	white	red	black	yellow	violet	pink	aqua

Sheath Colour:
The outer sheath colour is black or white
Sheath Marking:
The outer sheath is marked white color in 1 metre intervals as follows:
JIAHOME or your brand FIG GYXTC8S PART NUMBER OR YOUR ORDER NUMBER year of
Note:The sheath with color strip are available ,should be inform before production

Packing:

Fumigated stronger wooden coil or iron wooden coil idea for long distance delivery .and idea size for the optimized the container loading
Delivery length :2-6km

装货图

Parameter	Test method	Test conditions	Acceptance criteria*
Tensile strength	IEC 60794-1-21-E1	As per cable maximum tensile strength (max. Working tension) in table above	After 30 minutes the maximum strain on the fibre should not exceed 0.2% and no attenuation change throughout test
Crush	IEC 60794-1-21-E3	Short time: 10 min Long time: 120 min Load: As per maximum crush resistance in table above Number of positions: 3 adjacent sections (ensuring one over tube and one over lay reversal	No damage to the sheath or to the core structure and no attenuation change throughout test
Impact	IEC 60794-1-21-E4	Weight: 1.5 kgHeight: 1.0 mAnvil radius: 12.5 mm Impacts: 1	After 5 minutes no fibre breaks, no damage to the sheath or to the core structure and no attenuation change throughout test
Torsion	IEC 60794-1-21-E7	Sample length: 1 mRotation: a) 180º clockwise, b) return to starting position, c) 180º anticlockwise, d) return to starting position. Four movements constitute one cycle).Complete 10 cycles (a to d) in one minute maximum	During the final tenth cycle at a), c) and after completion (no rotation) check transmitting fibres. No fibre breaks, no damage to the sheath or to thecore structure and no attenuation change throughout test
BendBend under tension	IEC 60794-1-21- E11Concurrent totensile test IEC 60794-1-21-E18A	Mandrel diameter: 30 x Cable OD Bend: 360º (1turn)Mandrel diameter: 40 x Cable OD Bend: 360º (1turn)	No attenuation change throughout testAfter 1minutenofibre breaks, no damage to thes heath or to the core structure and no attenuation change throughout test
Temperature cycling	IEC 60794-1-22-F1	Sample length: 1000 m (minimum)Temperature range: – 10 °C to +70 °C
