FTTH Pigtail Connector SC FC LC ST Optical Fiber

Short Description:

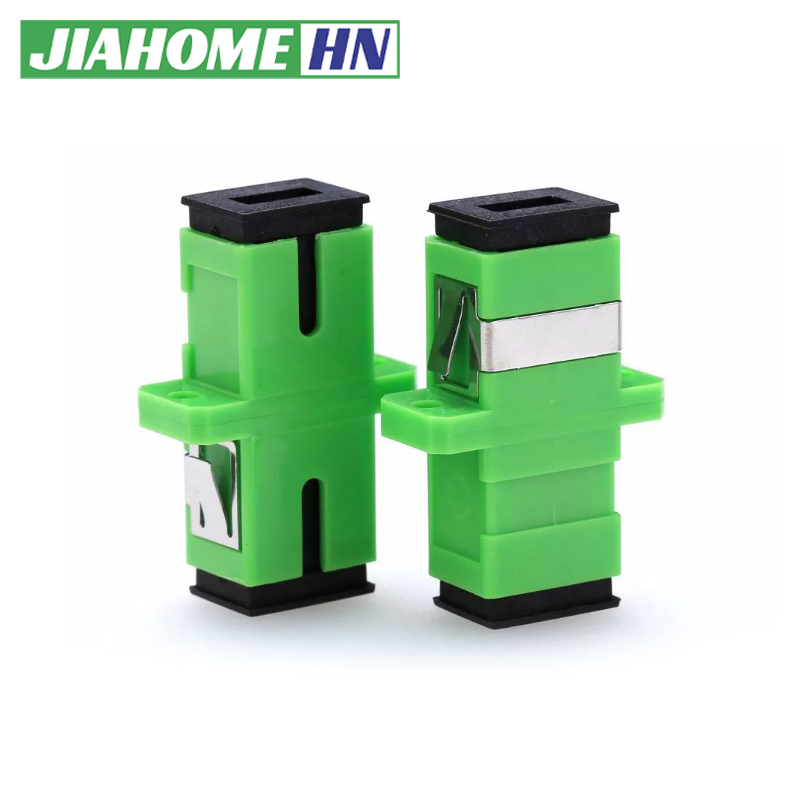

FTTH SM fiber optic adapter SC/APC as known as fiber optic coupler is a special connector designed to mate or connect two ends of fiber optic cable with high precision during FTTx line deployment. Key Features: 1. Small flange compare to common adapter2. Low insertion loss,high return loss3. Good repeatability and exchangeability4. Strict curing time and temperature control5. 100% NEW raw material and well quality control ensure the best life time.6.

100% ISO IEC Certificated Manufacturer ,Help You Save Purchase Cost ! Click send inquiry to get best offer and free sample now !

Send email to us

Product Detail

Product Tags

Video

Features

High dimensional accuracy
Excellent Interchangeability & Repeatability
High Wearability
High-Temperature Characteristic

Application

Optical Communication System
Optical Instruments
CATV
Fiber Optical Sensors

Features

1.SC, LC, FC, MU, ST, MT-RJ, E2000 connector available;
2.Superior qualified standard PC, APC, UPC, SPC polishing;
3.φ0.9mm, φ2.0mm, φ3.0mm cable optional;
4.Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available;
5. Available in fiber bunch, ribbon fan-out, pigtail available;
6. Simplex and duplex connector available;
7. Low IL and High RL; 8. Good exchange ability and good durability;
8. Customized specifications are welcomed.

Product Specification
Fiber count	12	Fiber Mode	9/125μm
Connector Type1	SC/APC	Connector Type2	Unterminated
Fiber Mode	SM	Breakout length	0.5m
Wavelength	1310/1550nm	Jacket Material	PVC/LSZH
Insertion loss	≤0.3dB	Interchangeability	≤0.2dB
Return loss	≥50dB	Vibration	≤0.2dB
Operating temperature	-40~75°C	Storage temperature	-45~85°C
