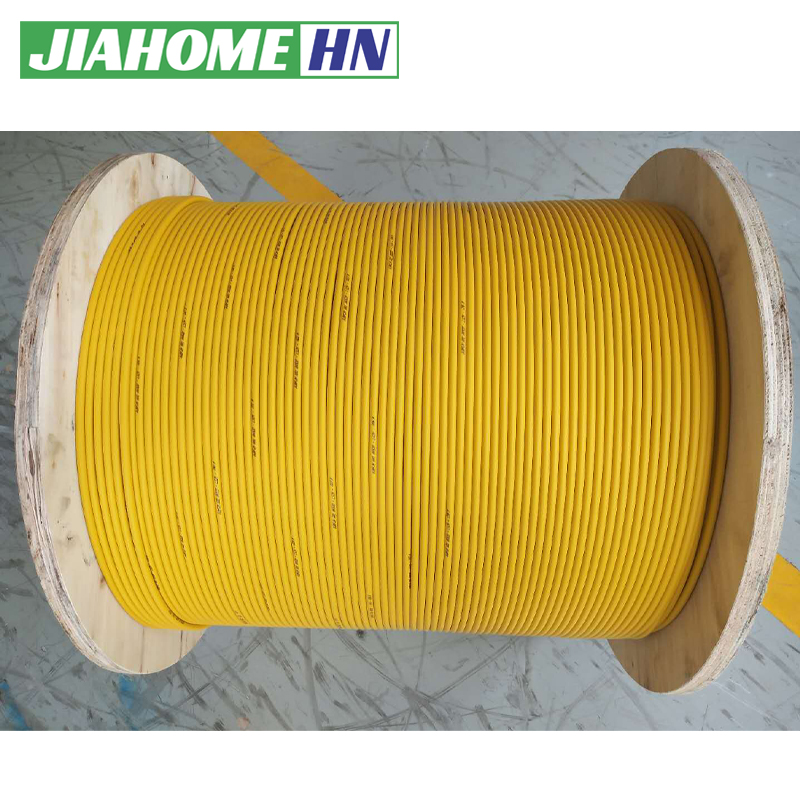

Indoor branch fiber optic cable
Video
Structure
Application
Used as access building cables
Used as an equipment interconnection line, used for optical connection in optical communication equipment room and optical fiber distribution frame
Indoor wiring
Suitable for patch cords and pigtails, indoor wiring
Power distribution system cables
Features
1. Flame retardant properties meet the requirements of relevant standards
2. Excellent temperature performance
3. Soft and easy to peel off
4. High-strength Kevlar yarn components
5. Small bending radius
6. Meet the various needs of the market and customers
Technical data sheet
|
Part code |
IN/Breakout xxxF |
|||||||
|
Number of Fibers |
Unit |
4 |
6 |
8 |
12 |
24 |
48 |
72 |
|
Number of fiber in tube |
Nos |
7.0 |
8.3 |
9.5 |
12.2 |
15.8 |
18 |
25 |
|
strength member in subunit |
Material |
Aramid yarn |
||||||
|
Sub unit cable |
Material |
pvc |
||||||
|
Size(mm) |
2..mm |
|||||||
|
Outer sheath |
Material |
LSZH |
LSZH
|
|||||
|
Cable nominal Diameter |
MM ±0.2 |
7.0 |
7.5 |
|||||
|
Cable nominal weight |
Kg/Km ±5 |
75 |
80 |
|||||
|
Max Tension Load
|
N |
1500 |
3000 |
|||||
|
Max. crush resistance |
N |
1500 (Short term) / 1000 (Long term) |
||||||
|
Min. bending radius |
|
At full load 20 x Cable OD (including poles) At no load 15 x Cable OD |
||||||
|
Temperature range |
|
Installation -0 -> +50 Operation -10 -> +70 |
||||||
Optical Characteristics SINGLE MODE G652D
|
Mode Field Diameter @ 1310 nm |
8.7-9.5 mum |
||
|
Mode Field Diameter @ 1550 nm |
9.8-10.8mum |
||
|
Cladding diameter |
|
125.0 ±± 0.7mm |
|
|
Core/cladding concentricity error |
|
0.6 um |
|
|
Cladding non-circularity |
|
1.0 % |
|
|
Refractive index profile |
|
Step |
|
|
Design |
|
Matched cladding |
|
|
Primary coating material |
|
UV curable acrylate |
|
|
Primary coating Diameter |
|
235-250um |
|
|
Optical Characteristics |
|
|
|
|
Attenuation |
|
@ 1310nm |
£ 0.36 dB/km (cabling) |
|
|
@ 1383±3nm |
£ 0.34 dB/km |
|
|
|
|
@ 1550nm |
£ 0.22dB/km (cabling) |
|
Dispersion |
|
@ 1288 ~ 1339nm |
£ 3.5 ps/nm×km |
|
|
@ 1550nm |
£ 18 ps/nm×km |
|
|
|
|
||
|
Zero dispersion wavelength |
|
1300 – 1324 nm |
|
|
Dispersion slope at zero dispersion wavelength |
£ 0.092 ps/nm2×km |
||
|
Cabled cut-off wavelength (cc) |
|
£ 1260 nm |
|
|
Polarization mode dispersion link value |
£ 0.2 ps/√km |
||
|
Mechanical Characteristics |
|
|
|
|
Proof stress level |
|
≥0.69 GPa |
|
|
The loss increase of 100 turns of fiber loosely wound with |
£0.05dB (at 1550nm) |
||
|
25mm radius |
|
|
|
|
Effective group index of refraction Neff |
1.466(at 1310nm) |
||
|
Effective group index of refraction Neff |
1.467 (at 1550nm) |
||
Packing
Fumigated stronger wooden coil or iron wooden coil idea for long distance delivery .and idea size for the optimized the container loading
Delivery length :1-2KM
