Differences Between G652D and G657A2 Optical Fibers:
G652D and G657A2 are two prominent standards for single-mode optical fibers, each designed for specific applications and environments. Here are the key differences between them:
1. Bending Performance

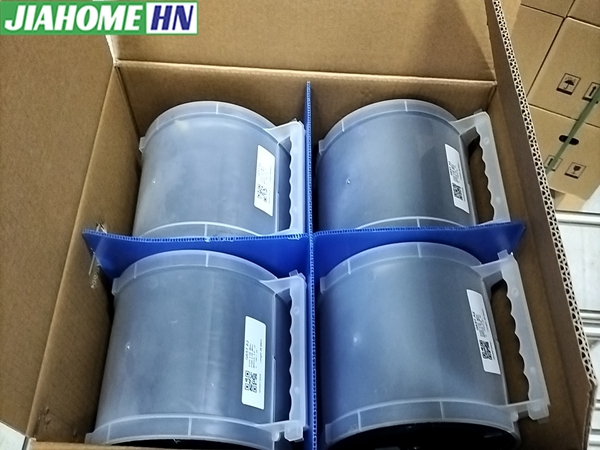

G657A2: This fiber is engineered for superior bending performance, allowing it to withstand tighter bend radii without significant signal loss. It is particularly suitable for environments where space is constrained, such as in Fiber-to-the-Home (FTTH) installations.

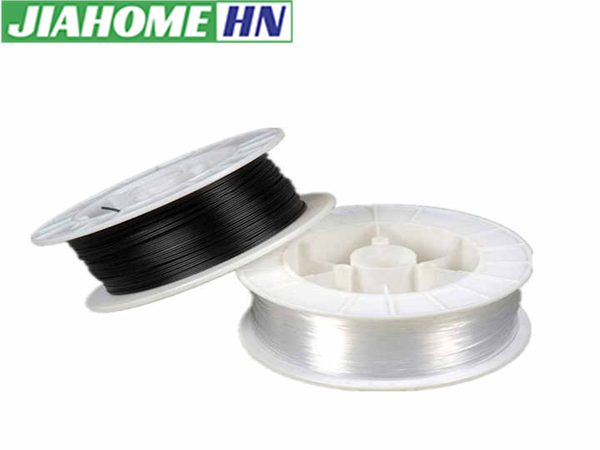

G652D: In contrast, G652D fibers have a larger minimum bend radius (approximately 30 mm), making them less suitable for installations requiring tight bends.
2. Compatibility
G652D: This fiber is backward compatible with older systems, making it a reliable choice for upgrading existing networks without the need for extensive modifications.
G657A2: While G657A2 is also compatible with G652D, it may require careful integration into existing infrastructures due to its specialized design for bending performance.
3. Applications
G652D: Commonly used in long-haul networks and metropolitan area networks, G652D fibers excel in applications requiring minimal signal loss over extended distances. They are ideal for backbone networks where traditional routing is feasible.
G657A2: This fiber type is tailored for access networks, particularly in scenarios where installation involves frequent bending and tight spaces. Its enhanced flexibility makes it a preferred choice for data centers and high-density environments.
4. Attenuation Characteristics
Both fiber types exhibit similar attenuation rates at 1310 nm, but G652D fibers generally have slightly lower transmission loss over longer distances compared to G657A2 fibers, which may experience higher losses when bent excessively.
5. Cost and Installation
G652D: Although it may involve higher costs due to the need for more extensive routing to avoid bends, it is often seen as a cost-effective solution for long-distance applications due to its lower attenuation.
G657A2: The ability to handle tighter bends can lead to reduced installation costs and space requirements, making it economically advantageous in high-density installations.
In conclusion, the choice between G652D and G657A2 depends on the specific requirements of the network installation. For long-distance applications with minimal bending needs, G652D is optimal, while G657A2 excels in environments requiring flexibility and compact routing solutions. If you wanna consult more optic fiber details pls contact your fiber optic cable solutions provider - Hunan Jiahome
Related Q&A about G652D and G657A2:
Q1: Can G657A2 fiber be used to replace G652D in all applications?
A1: No, while G657A2 can technically replace G652D in many applications due to its bending tolerance, it might not be optimal for long-haul networks where G652D’s larger mode field diameter is advantageous.
Q2: What are the bending radii for G652D and G657A2 fibers?
A2: G652D typically requires a bending radius of at least 30 mm, while G657A2 can handle bends as tight as 7.5 mm without significant signal loss.
Q3: Which fiber type is more cost-effective for FTTH installations?
A3: G657A2 is more cost-effective for FTTH due to its bend insensitivity, allowing for easier and denser cabling in tight spaces.
Q4: Can G652D and G657A2 fibers be spliced together?
A4: Yes, they can be spliced together, but careful consideration is needed as the differences in mode field diameter might slightly impact splice loss.
