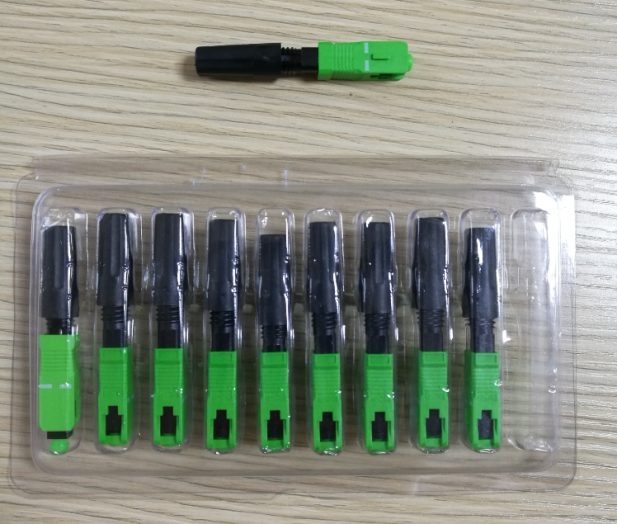

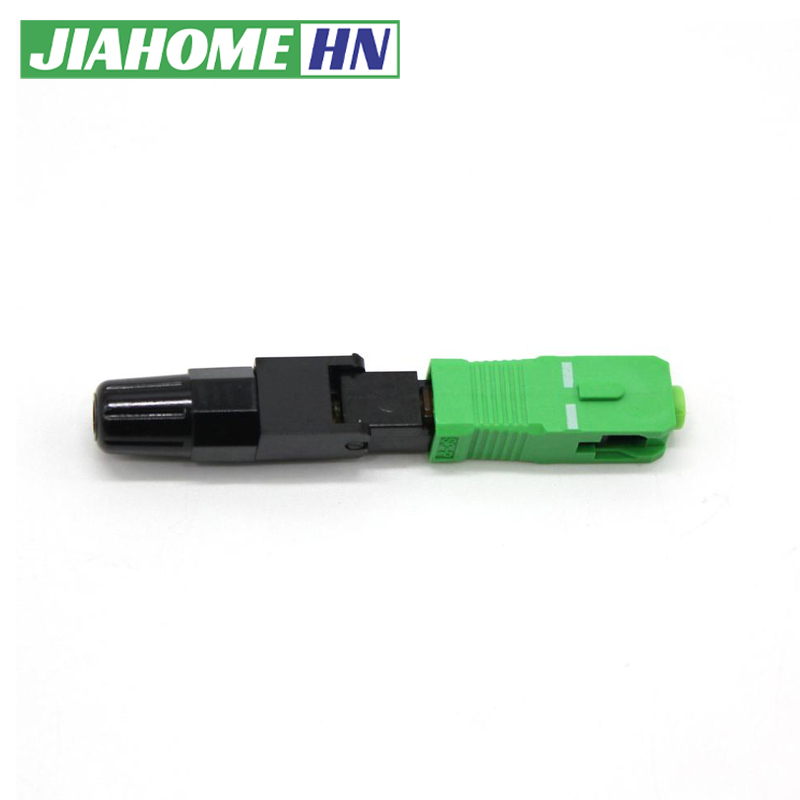

Optical Fiber Splice Mechanical Connector

Short Description:

Optical fiber connectors, optical fiber and optical fiber is removable (activities) of the connection between the device and the fiber of two surface precision docking it, so that the optical output of light energy to maximize the coupling to the receiving optical fiber, and optical link due to the intervention and to minimize the effects on the system, it is the basic requirement of optical fiber connector.To some extent, fiber optic connectors affect the reliability and performance of optical transmission system.

100% ISO IEC Certificated Manufacturer ,Help You Save Purchase Cost ! Click send inquiry to get best offer and free sample now !

Send email to us

Product Detail

Product Tags

Video

Technical parameter

SC/APC
1: Application		2.0MM*3.0MM drop cable
2:Application Environment		-40℃~+85℃
3: Operation time		About 10second
4: Optical property
Insertion Loss	Test with standard connector and adapter: ≦0.3dB
	Test with any connector and adapter: ≦0.5dB
Return loss	≥50dB(UPC),≥60dB(APC)
5：Passive Optical Components
Insertion Loss	≦0.2dB
Return loss	≥40 dB
Interchangeability	≦0.2dB
tensile strength test	≦0.1dB（0-15Hg，except φ0.9mm）
Vibration test	≦0.1dB(10-60Hz,1.5mm amplitude)
6：Factory-Installed Termination System
Insertion Loss	≤0.3　dB
Return loss	≥50dB(UPC),≥60dB(APC)
7: Parameter of Connector End Face 3D:
Contact pin(mm)	2.5
Radius of curvature(mm)	PC/UPC: 10~25, APC: 5~15
Apex offset(um)	≦50
Fiber height(nm)	-100~+50
Degree of APC(°)	8+-0.2
8：Environmental performance
Temperature cycle	-40℃~+85℃, 21 cycles and 168Hrs, the Insertion loss variation ≦0.3dB
Low temperature	-40℃, within 96hrs, the Insertion loss variation ≦0.3dB
High temperature	85℃, within 96hrs, the Insertion loss variation ≦0.3dB
Immerse	Indoor temperature, within 168hrs, the Insertion loss variation ≦0.3dB
No epoxy adhesives, no fiber polishing
9：Mechanical property
Vibration	Frequency: 10-50Hz, Frequency Sweep:45 times/1min, Amplitude: 0.75mm
	Time: each 2hours to 3 point: the Insertion loss variation ≦0.3dB
Fall off	Height: 1.5M, Times: 8times, the Insertion loss variation ≦0.3dB
Tensile resistance	0.125mm:4N, Do not monitor optical performance online
	Cable：20N：On-line monitoring of optical performance
Repeatable assembly performance	5 times：the Insertion loss variation ≦0.3dB
Mechanical durability	Insert and Draw Frequency：500 times，the Insertion loss variation ≦0.3dB
Repeatability	Insert and Draw Frequency：10 times，the Insertion loss variation ≦0.3dB
length	9*60MM
Remarks: 1.Includes necessary accessories for installation kit with its respective transitions and protections. 2.Suitable for G.652D and G.657A with 900 micron and 3 mm 3.No special or additional tools required for connector assembly
