Underground Fiber Optic Cable Armored GYTS OS2 FIBER 36 Core

Short Description:

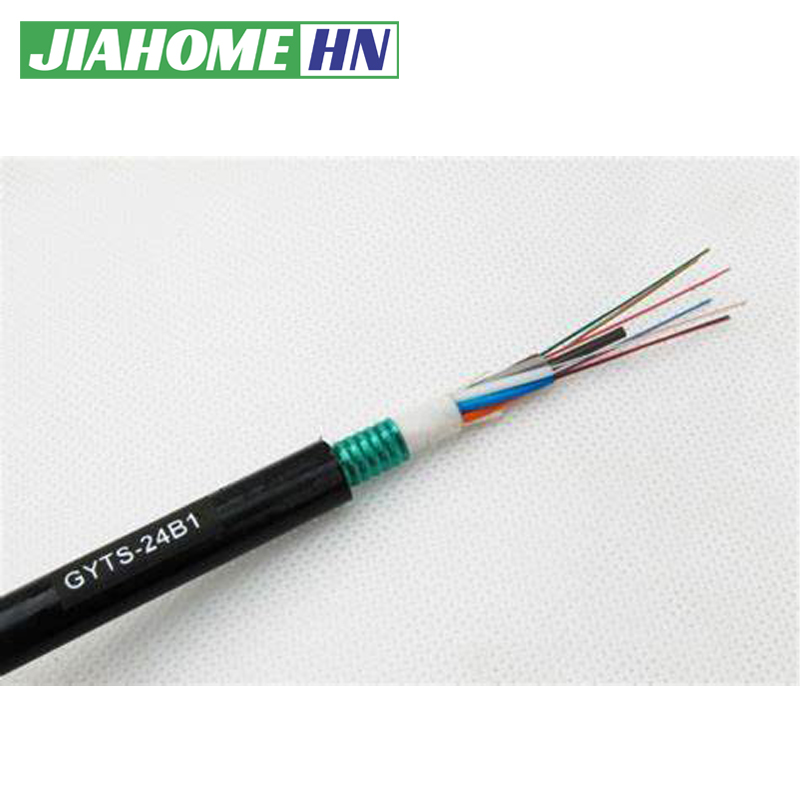

In the GYTS cable, SM OS2 9/125 Fiber /om1 om2 om3 om4 fiber are positioned in the loose tubes, the tubes are filled with water blocking gelly filling compound.Tubes and fillers are Multi tube stranded around the strength member into a circular cable core. An Corrugated steel armoured is applied around the cable core. Then PE(polyethylene) are extruded outer sheath. The number of fiber core from 2-288core ,widely different fiber core types.It is idea for the Duct underground conduit (UG & DU )anti rodent installation way.

100% ISO IEC Certificated Manufacturer ,Help You Save Purchase Cost ! Click send inquiry to get best offer and free sample now !


Product Detail

Product Tags

Video

Structure

The fibers are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound.The tube is wrapped with a layer of corrugated steel tape.Between the corrugated steel tape and the loose tube water-blocking material is applied to keep the cable compact and watertight.

Application

Underground duct pipeline backbone fiber optic cable ring infrastructure of telecommunication / Rural fiber optic telecommunication construction  underground install

Method of installation: Direct burial preferred, other methods of installation are also available
Operating temperature range: -40°C~+60°C

Features

Corrugated steel armored anti rodent,Triple water block design anti Water seepage and moisture proof,Multi loose tube the fiber core max 288core and support ribbon fiber core.

Standards

Cable Type

GYTS-36

Fiber Count

36

Tubes

6

Fillers

0

Cable Diameter(mm)

11.5

Cable Weight (kg/km)

126

Tensile Strength (Long/Short Term N)

1000/3000

Crush Resistance (Long/Short Term N/100mm)

300/1000

Bending Radius (Static/Dynamic mm)

10D/20D
