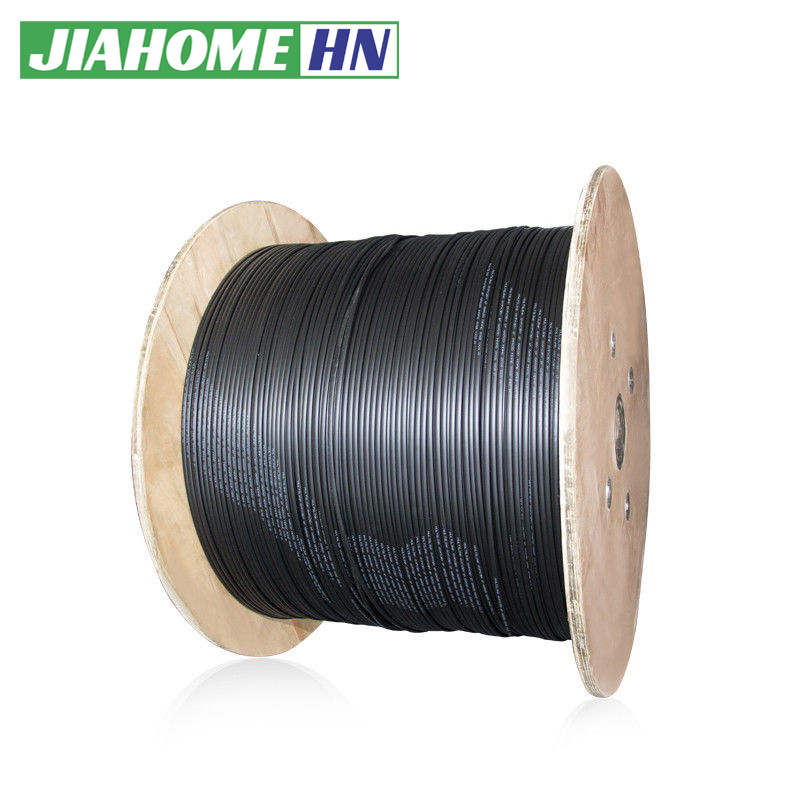

UNIVERSAL (INTERIOR / EXTERIOR) SINGLE CENTRAL TUBE ADSS
Video
Structure
We Jiahome improved the produce technology and improved the structure design according to the 10years experience ,aim to producing the Adss fiber optic cable which close to the end user ,suitable for high efficient installation way .Contact at us to get reasonable design and competitive offer .
Application
The ADSS Fiber widely application install on the existed electrical pole like 35-110kv power transmission line ,the area which more lightning weather .according to different span (the max distance of between pole and pole). Installed in ducts, lashed/Aerial.
Features
1. Loose tube gel-filled construction for superior fiber protection.
2. All Dielectric structure.
3.UV and moisture-resistant design.
CABLE DESIGN
|
Part code |
ADSS 6 ---50m span |
|
|
Number of Fibers |
Unit |
6core |
|
Number of fiber in tube |
Nos |
6 |
|
Number of loose tube |
Nos |
1 |
|
Loose tube |
Material |
PBT |
|
peripheral strength member |
Material |
Aramid yarn |
|
Water block |
Material |
Water swellable tape and water block yarn |
|
Outer sheath |
Material |
HDPE |
|
Cable nominal Diameter |
MM ±0.2 |
7.4 |
|
Cable nominal weight |
Kg/Km ±5 |
63 |
|
Max. tension Load |
N |
1500N |
|
Span |
50mspan |
|
|
Max. crush resistance |
N |
00 (Short term) / 1000 (Long term) |
|
Min. bending radius |
At full load 20 x Cable OD (including poles) At no load 15 x Cable OD |
|
|
Temperature range |
Installation -0 -> +50 Operation -10 -> +70 |
|
CABLE DESIGN
